MIS Tools Building Metal Products Trading LLC welcomes you to smart, heavy-duty equipment for your toughest drilling operations. Our DIA 200 HWS Diamond Core Drill is a strong, high-performance machine for dry or wet drilling on concrete and other tough surfaces. It’s made for comfort, safety, and peak performance.

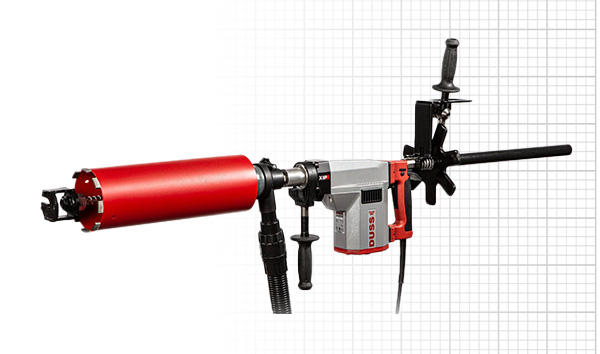

What is the DIA 200 HWS Diamond Core Drill?
The DIA 200 HWS diamond core drill is a robust diamond core drill which drills very large, clean holes in hard materials like concrete and masonry. It is either handheld or driven by a unique feed system (CLF) for less wobbly and less pronounced drilling. It is capable of dry drilling and wet drilling, thus being safe for use on construction sites as well as sensitive indoor environments.
Applications
The DIA 200 HWS is perfect for:
- Dry drilling of concrete or reinforced concrete, with or without soft strike
- Dust-free dry drilling in server rooms, electrical rooms, archives, and production floors
- Retrofits for indoor plumbing or electricity in homes or offices
- Drilling of insulated or tight wall spaces for home connections
- Hard-to-reach spaces, such as above ceilings, around existing pipes, or near windows
- Clean drilling where the environment must be kept clean (e.g., no anchor hole mess)
- Hand-held or drill stand, depending on site conditions
- Used in construction, building restoration, heating, plumbing, air conditioning, and other drilling uses
Note: Wet drilling may be done with an optional WDFH rotary water union.
Features
CLF Feed System: Combines hand-held and stand-guided drilling for easier use
Manual Feed Rod: Eases the drilling and reduces effort
Drill Core Catcher: Safeguards the core on the feed rod to remove it safely and simply
Soft Impact Mode (XIP): Raises drilling performance in hard material
Quick Setup: Rapid in comparison with standard wet drilling methods
Dust Extraction: Keeps your workplace tidy and boosts drilling speed
Compact & Lightweight: Easy to transport, to set up, and to maneuver – even in tight spaces
Flexible Handles & Positions: For safe drilling from any angle
LED Display: Helps to monitor performance and plan service
Trigger Lock: Enables continuous drilling, even when gloves are worn
Overload Protection & Soft Start: Assures easy and safe starts
Safety Clutch: Prevents drill jamming
Auxiliary Handle: Favors you while drilling without subjecting your back to strain
Technical Specifications
| Features | Details |
| Rated Power | 2000 W |
| Machine Weight | 7.3 kg (11.8 kg with feed system) |
| Chuck Type | 1 1/4″ UNC |
| Speed | 680 rpm |
| Dry Drilling (Hand-held) | Ø 82 – 132 mm in concrete |
| Dry Drilling with Feed System | Ø 82 – 202 mm |
| Dry Drilling with Soft Impact (Hand-held) | Ø 82 – 202 mm |
| Dry Drilling with Soft Impact & Feed System | Ø 82 – 202 mm |
| Wet Drilling | Optional with WDFH water union |
Why Choose Us?
- Excellence tools are professionally recommended across the UAE
- A large variety of products for every construction and drilling need
- Competitive rates and expert consultancy
- Prompt delivery and excellent customer service
- Guaranteed, original products from leading manufacturers
For hard, clean, and easy drilling, choose the DIA 200 HWS Diamond Core Drill – now in stock with MIS Tools Building Metal Products Trading LLC. Perfect for big jobs, tight spots, and everything in between.
